Clamp Style Handrail
$1.00

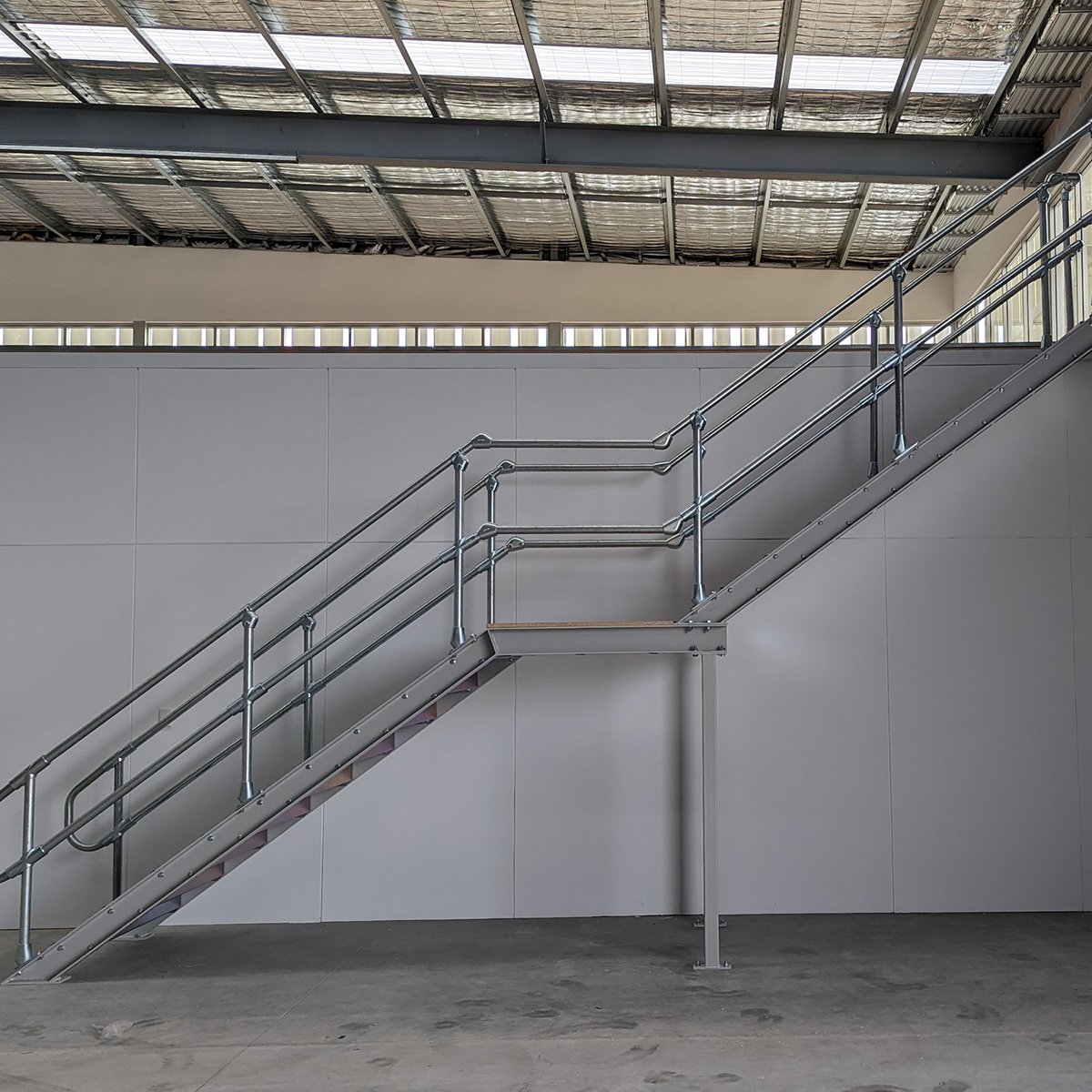

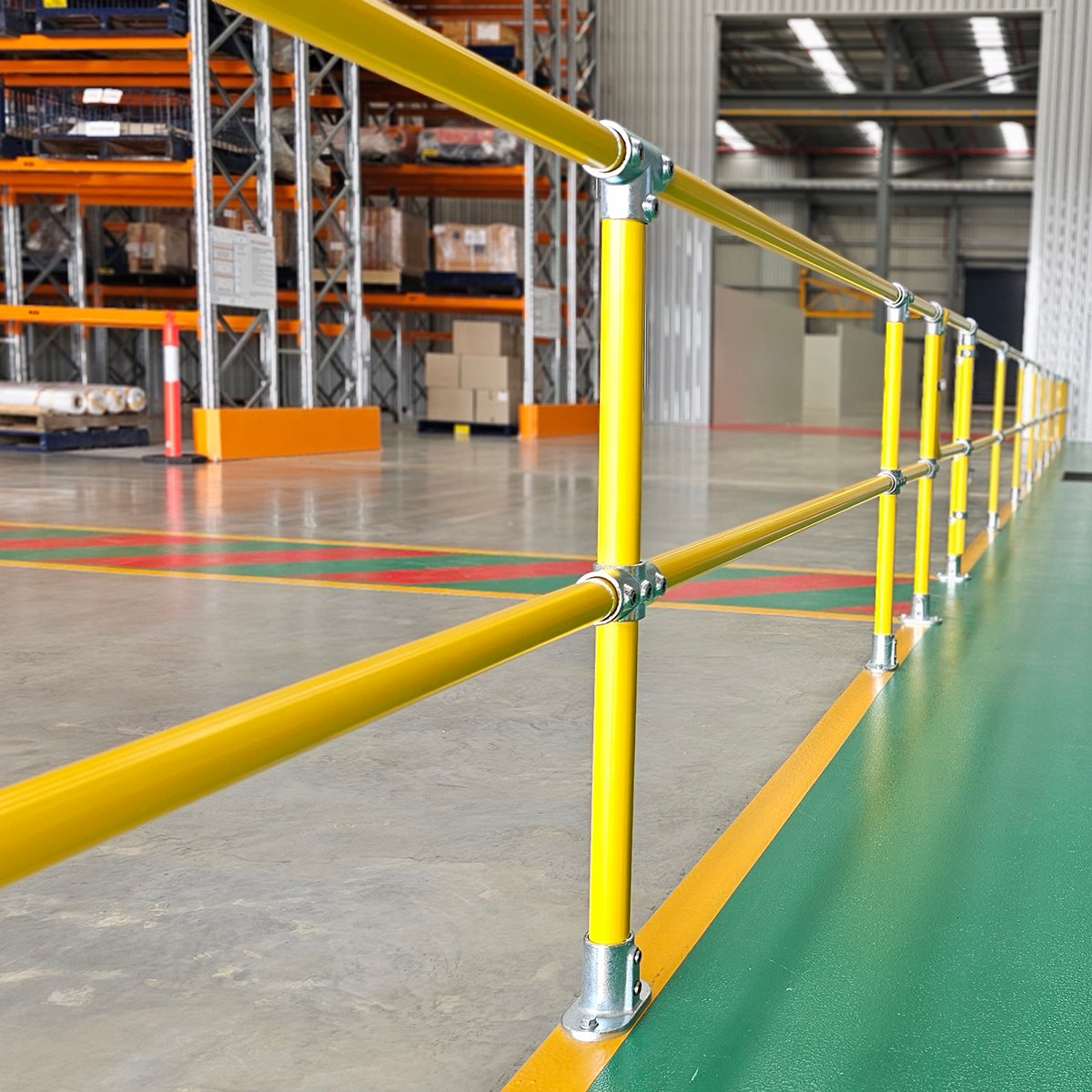

Ideal for handrail stanchions and balustrade systems.
| HEIGHT | Standard height of the hand rail is 1050mmH, however the handrail or barrier can be customized to any height required. |
| STANCHION SPACING | The maximum distance from center to center of the stanchions should not exceed 2000mm |
| KICK RAIL HEIGHT | 125mmH |
| DISTANCE BETWEEN RAILS | For installations on a Mezzanine floors the rails can not be spaced more than 450mm apart, and a kick rail is required in this type of installation
For installations on a warehouse floor or at floor level, the knee rail should not be set higher than 560mm from the ground and the hand rail should not have more than a 450mm gap from the knee rail |
| RAIL SIZE | The rail diameter is 48mm |
| OTHER APPLICATIONS | Handrails
Balustrade Gates Barriers Enclosures Trolley bays Animal enclosures Play grounds Any other non-welded fabricated structure. |
| Fitting Type |

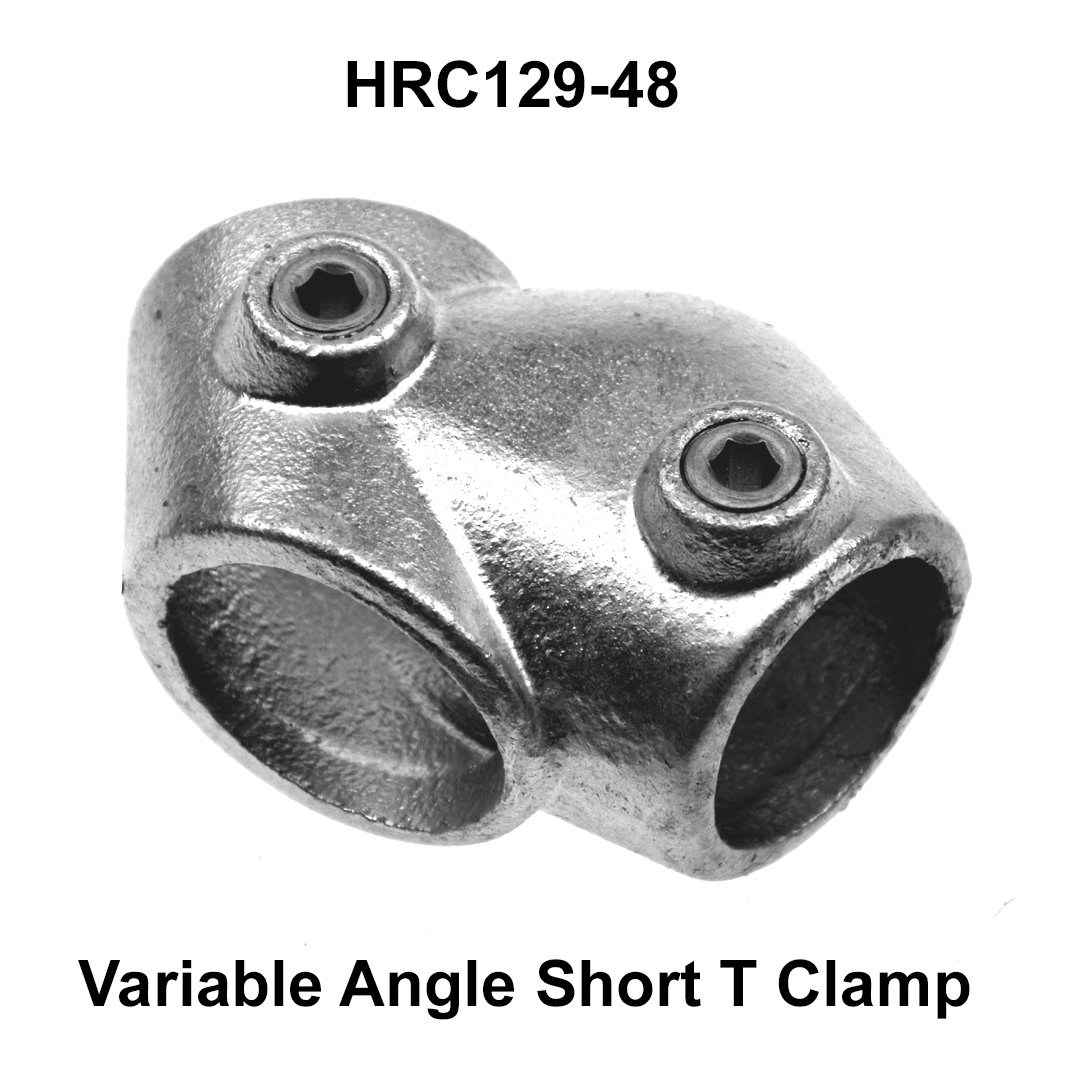

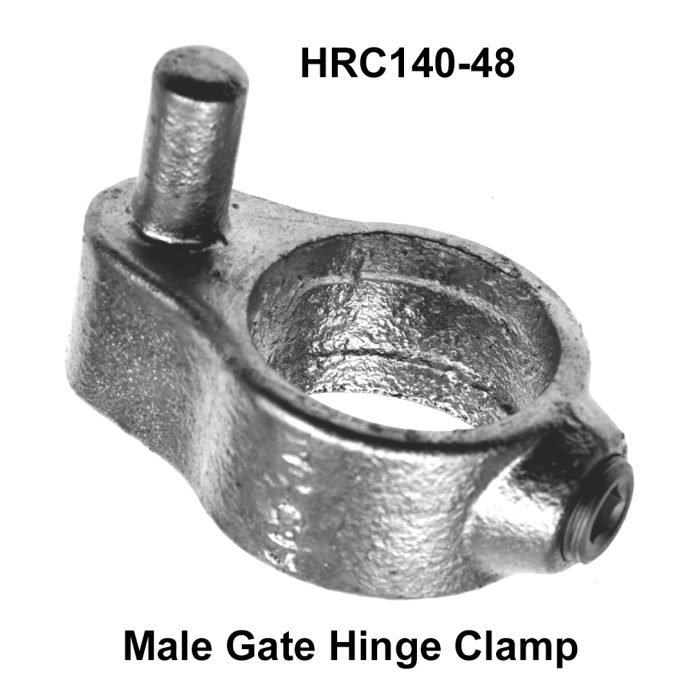

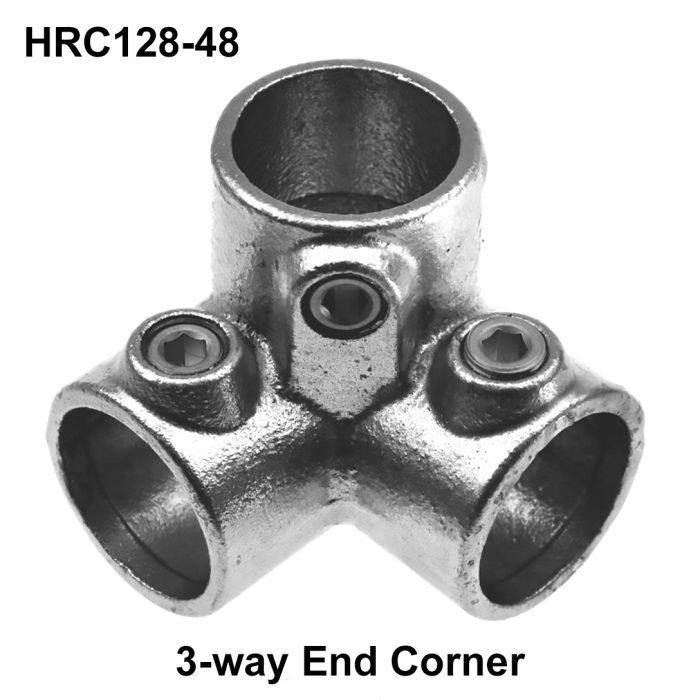

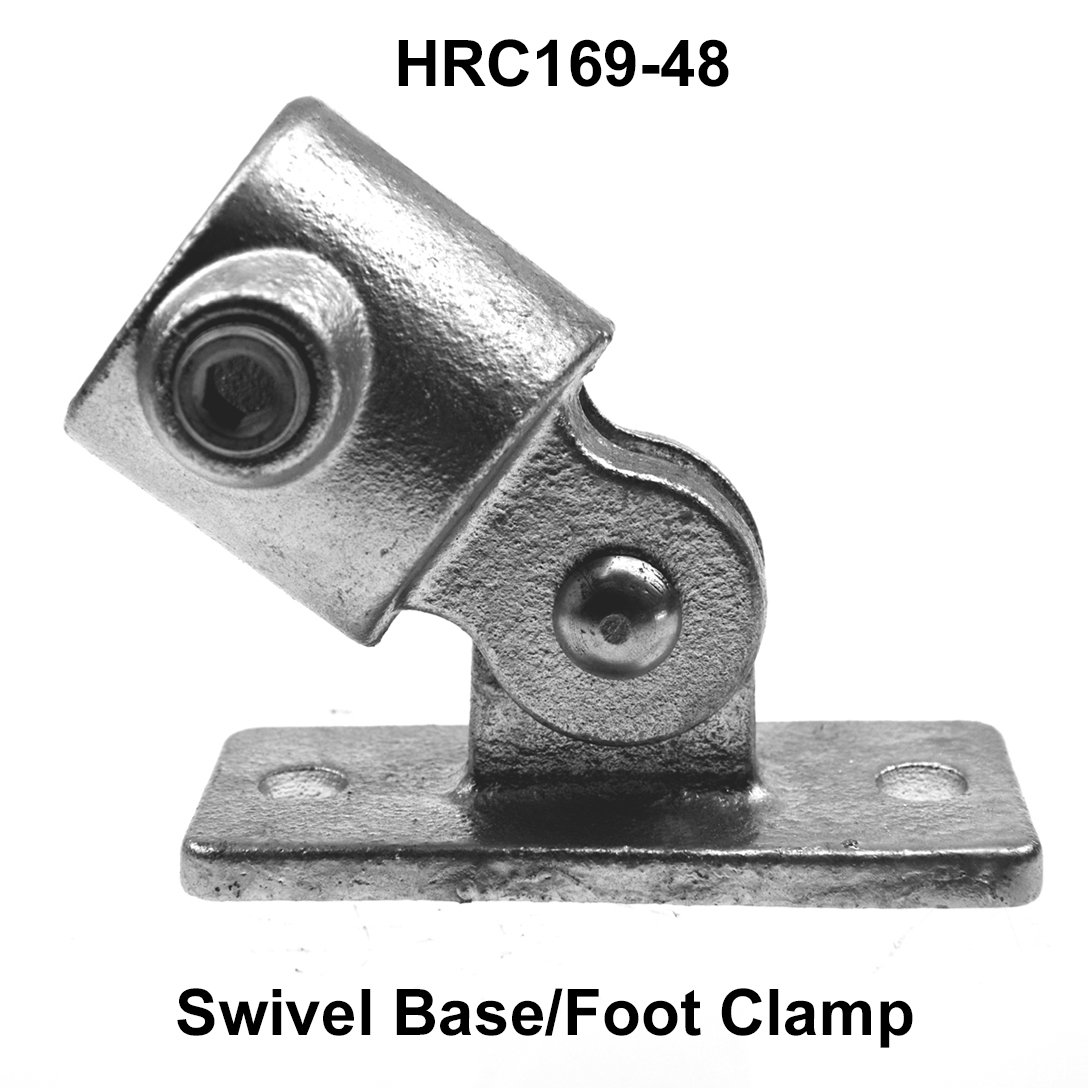

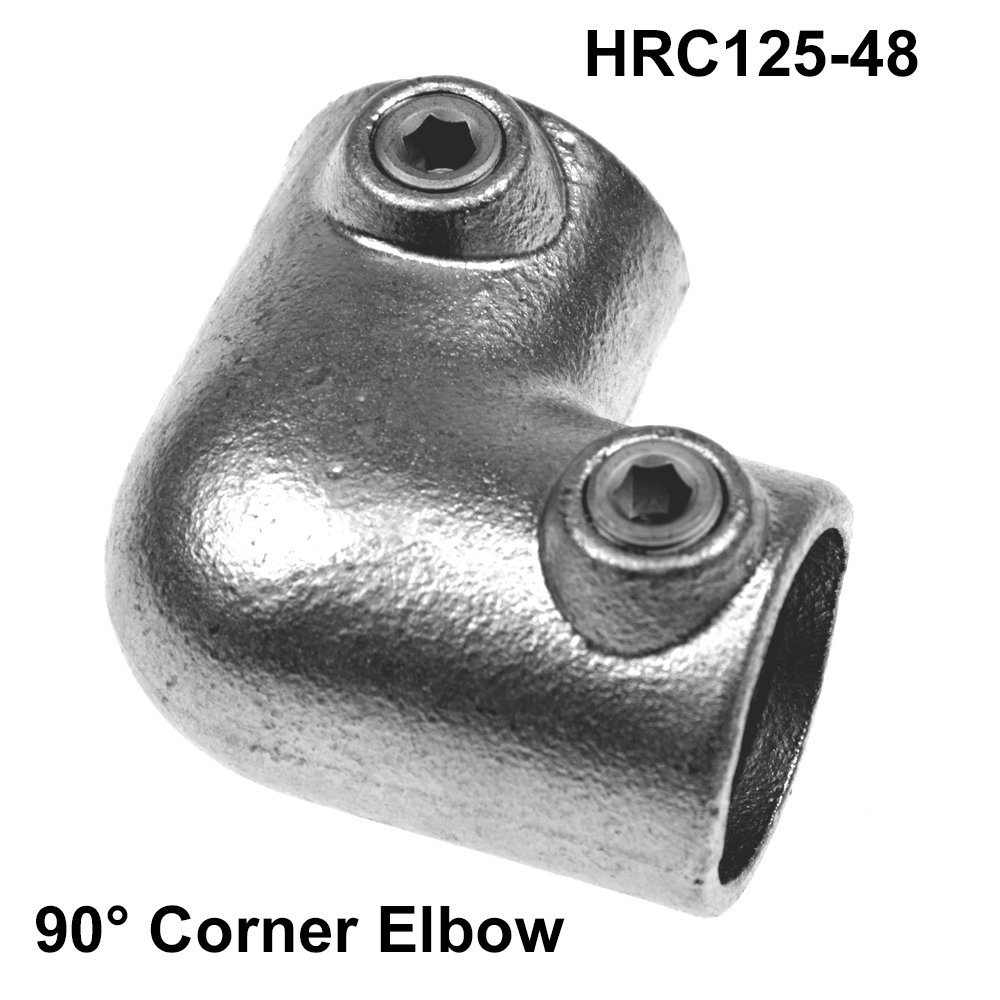

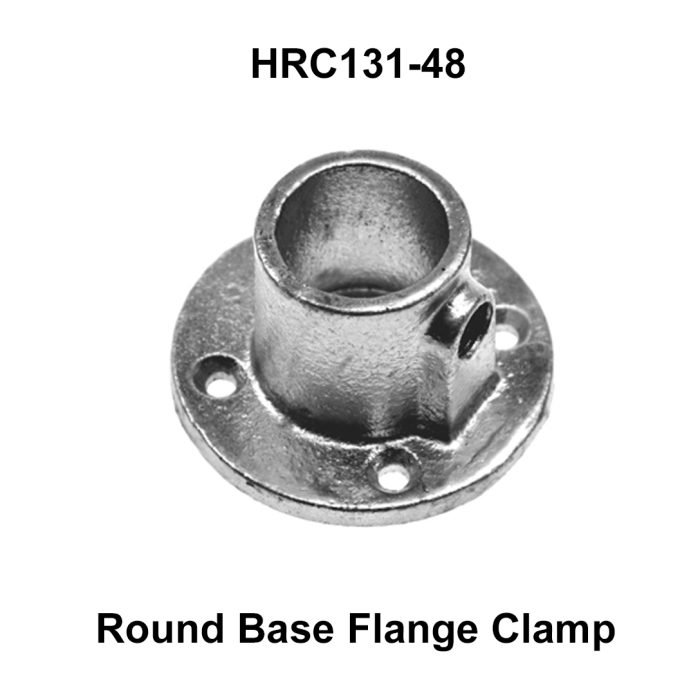

101-48 ,104-48 ,116-48 ,119-48 ,123-48 ,124-48 ,125-48 ,125H-48 ,127-48 ,128-48 ,129-48 ,130-48 ,131-48 ,132-48 ,133-48 ,138-48 ,140-48 ,141-48 ,143-48 ,144-48 ,149-48 ,150-48 ,169-48 ,170-48 ,171-48 ,176-48 ,198-48 ,199-48 ,251-48 ,48mmx1000mmL Galv Tube ,48mmx1950mmL Galv Tube ,48mmx1000mmL Yellow Tube ,48mmx1950mmL Yellow Tube |
|---|
